Industrial Oil Burner BNL180
Home / PRODUCTS / Two Stage Light Oil Burner / Industrial Oil Burner BNL180

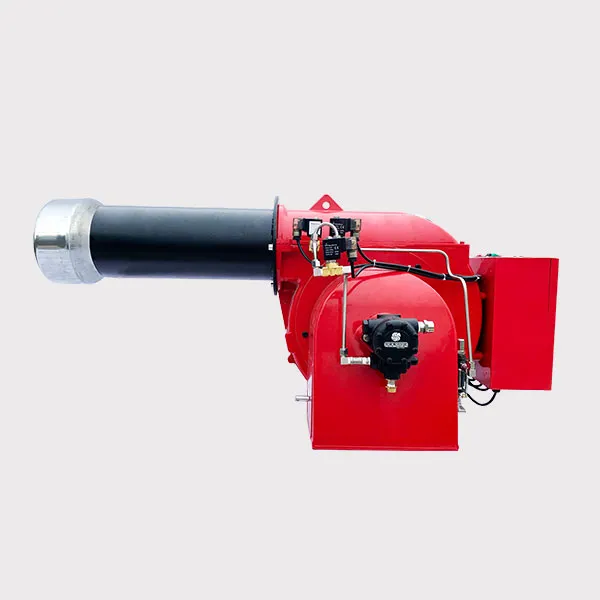

Industrial Oil Burner BNL180
Industrial Oil Burner BNL180

Industrial Oil Burner BNL180

Oil fired burner;One/Two stage operation;712-2135kw;

Send Inquiry Send Email
  • Fast Delievery
  • Quality Assurance
  • 24/7 Customer Service
Product Introduction

Question 1-Product Description


SHORT DESCRIPTION

•Light oil burner.
•One/Two stage operation (on/off)
•High pressure mechanical atomisation of fuel using nozzle.
•Ability to obtain optimal combustion values by regulating combustion air and blast-pipe.
•Maintenance facilitated by the fact that the atomisation unit can be removed without having to remove the burner from the boiler.
•Single stage manual flow adjustment.
•Two stage airflow regulation for first and second stage by means of hydraulic regulator.
•One flange and one insulating seal for boiler fastening.
•Combustion air intake with airflow adjustment device.
•Sliding boiler coupling flange to adapt to head
•Protrusion of the various types of boilers.
•Sliding boiler coupling flange to adapt to head protrusion of the various types of boilers.
•Monophase electric motor to run fan and pump.
•Flame presence check by photoresistance.
•Electrical plant protection rating Ip40.

PRODUCT VIDEO

Send Inquiry


Question 2-Product Parameter


BNL180 PARAMETERS

ModelBNL180
FuelDiesel Oil
Power(kw)712-2135
Oil Flow(kg/h)60-180
Power Supply1N AC 50HZ 220V
Moter Power(kw)3
Combustion Chamber Pressure(mbar)
15.1
ControlOne/Two stage
Packing Size(mm)
1250x1200x800
Weight(kg)
190

*For more parameters, please contact: info@bntet.com


Question 3-Product Display


bnl180-2

Oil burner consists of oil nozzle and air regulator. Oil nozzles placed in the regulator axis line, the oil will be atomized into fine droplets, with a certain diffusion angle (also known as atomization angle) sprayed into the combustion chamber, and the regulator into the air mixed with the fire after combustion.

Send Inquiry
BNL180-details01

BNL180-details01

BNL180-details-02

BNL180-details-02


Question 4-Application


oil-burner-application


Question 5-FAQ


Q:What is the working principle of diesel burner?

A:These burners generate heat by spraying fuel which is then burned. The burner uses a nozzle to spray the fuel which is ignited by an ignition source. The flame created by the burning fuel heats the heat exchanger inside the burner which in turn releases the heat to the outside.

Q:What is a 2-stage oil burner?

A:2-stage burner can switch the flame size with one button, providing a simpler way to control temperature！
