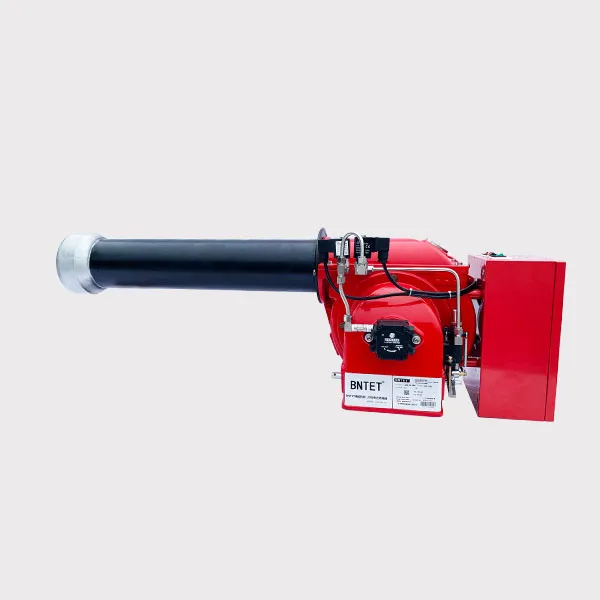

Industrial Oil Burner BNL55
Industrial Oil Burner BNL55

Industrial Oil Burner BNL55


Industrial Oil Burner BNL55 is the component of a boiler system responsible for mixing fuel (diesel oil) with air and igniting it to create a controlled flame that heats the water inside the boiler.


🔘Fuel:diesel oil

🔘Heating Power:332-652kw

🔘Oil Flow:28-55kg/h



Send Inquiry Send Email
  • Fast Delievery
  • Quality Assurance
  • 24/7 Customer Service
Product Introduction

Question 1-Product Description


SHORT DESCRIPTION

•Light oil and Heavy oil burner.

•Single/Two stage operation (on/off)
•High pressure mechanical atomisation of fuel using nozzle.
•Ability to obtain optimal combustion values by regulating combustion air and blast-pipe.
•Maintenance facilitated by the fact that the atomisation unit can be removed without having to remove the burner from the boiler.
•Single stage manual flow adjustment.
•Two stage airflow regulation for first and second stage by means of hydraulic regulator.
•One flange and one insulating seal for boiler fastening.
•Combustion air intake with airflow adjustment device.
•Sliding boiler coupling flange to adapt to head
•Protrusion of the various types of boilers.
•Sliding boiler coupling flange to adapt to head protrusion of the various types of boilers.
•Monophase electric motor to run fan and pump.
•Flame presence check by photoresistance.
•Electrical plant protection rating Ip40.

PRODUCT VIDEO

Send Inquiry


Question 2-Product Parameter


BNL55 PARAMETERS

ModelBNL55
FuelDiesel Oil
Power(kw/h)332-652
Oil Flow(kg/h)28-55
Power Supply1N AC 50HZ 220V
Motor Power(kw)0.55
Combustion Chamber Pressure(mbar)
6.9
ControlOne/Two stage fire
Packing Size(mm)
1050x900x700
Weight(kg)60

*For more parameters, please contact: info@bntet.com


Question 3-Product Display


industrial-oil-burner-BNL55-2

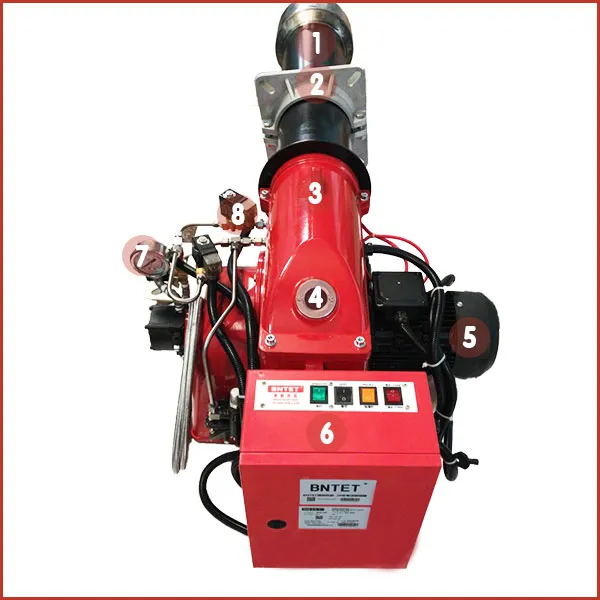

PRODUCT DETAILS

1.Combustion Tube
2.Burner installation flange
3.Burner Body
4.Fire View Mirror
5.Motor
6.Control cabinets
7.Pressure gauge
8.Solenoid valve
Send Inquiry

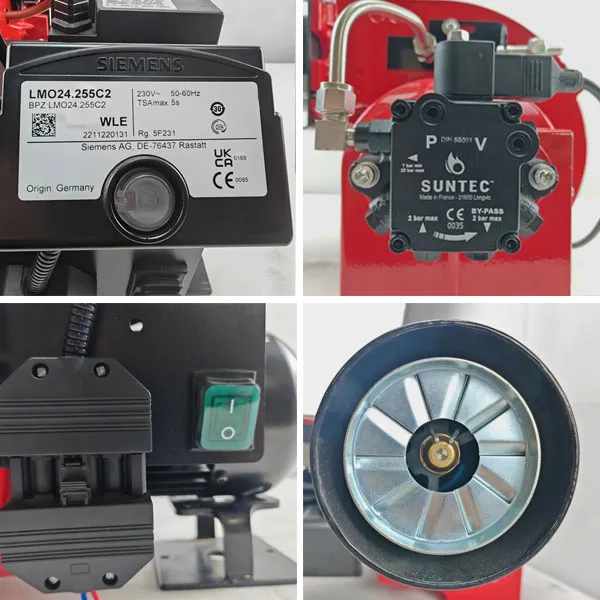

BNL55-details01

BNL55-details01

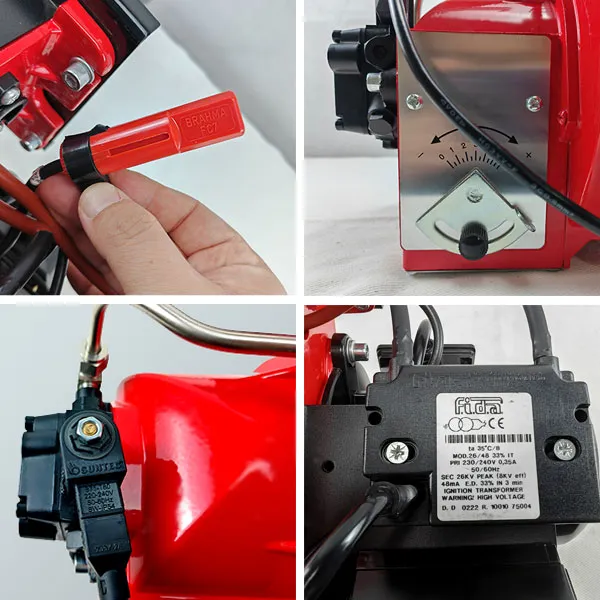

BNL55-details02

BNL55-details02


Question 4-Application


oil-burner-application


Question 5-FAQ


Q:What is the working principle of diesel burner?

A:These burners generate heat by spraying fuel which is then burned. The burner uses a nozzle to spray the fuel which is ignited by an ignition source. The flame created by the burning fuel heats the heat exchanger inside the burner which in turn releases the heat to the outside.

Q:What is a 2-stage oil burner?

A:2-stage burner can switch the flame size with one button, providing a simpler way to control temperature！


Question 6-Our service


package

industrial-oil-burner-package
