Industrial Oil Burner BNL35

Question 1-Product Description

SHORT DESCRIPTION

•Light oil and Heavy oil burner.

•Single/Two stage operation (on/off).

•High pressure mechanical atomisation of fuel using nozzle.

•Ability to obtain optimal combustion values by regulating combustion air and blast-pipe.

•Maintenance facilitated by the fact that the atomisation unit can be removed without having to remove the burner from the boiler.

•Single stage manual flow adjustment.

•Two stage airflow regulation for first and second stage by means of hydraulic regulator.

•One flange and one insulating seal for boiler fastening.

•Combustion air intake with airflow adjustment device.

•Sliding boiler coupling flange to adapt to head

•Protrusion of the various types of boilers.

•Sliding boiler coupling flange to adapt to head protrusion of the various types of boilers.

•Monophase electric motor to run fan and pump.

•Flame presence check by photoresistance.

•Electrical plant protection rating Ip40.

PRODUCT VIDEO

Question 2-Product Parameter

BNL35 PARAMETERS

Model	BNL35
Fuel	Diesel Oil
Power(kw)	178-391
Oil Flow(kg/h)	15-33
Power Supply	1N AC 50HZ 220V
Moter Power(kw)	0.37
Combustion Chamber Pressure(mbar)	6.3
Control	One/Two stage
Packing Size(mm)	850x530x395
Weight(kg)	25

*For more parameters, please contact: info@bntet.com

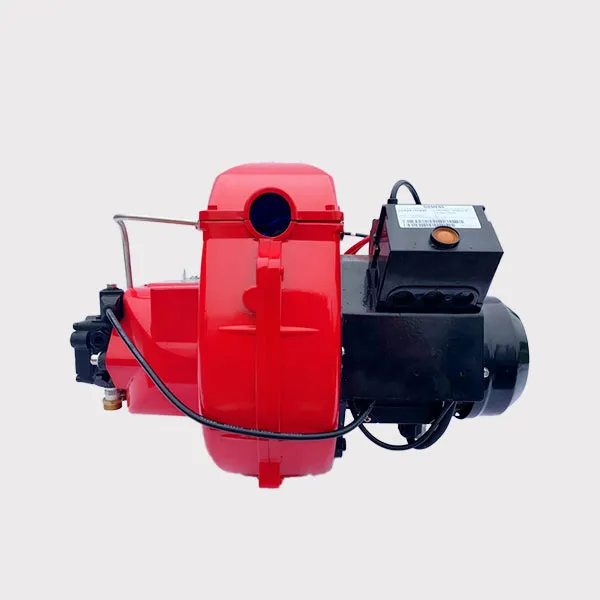

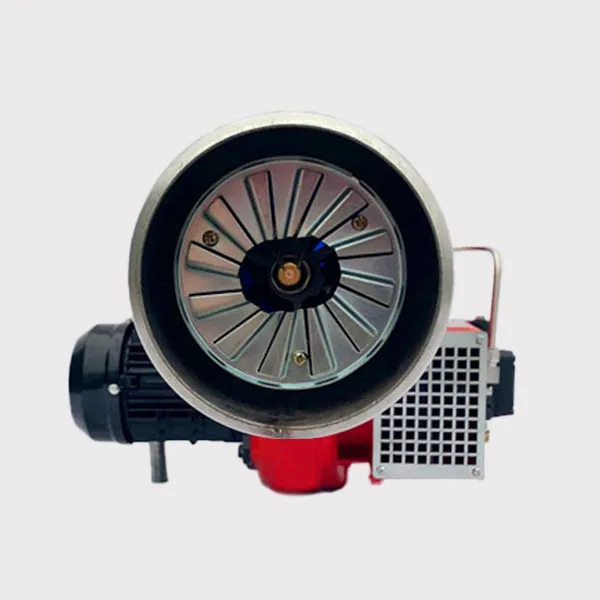

Question 3-Product Display

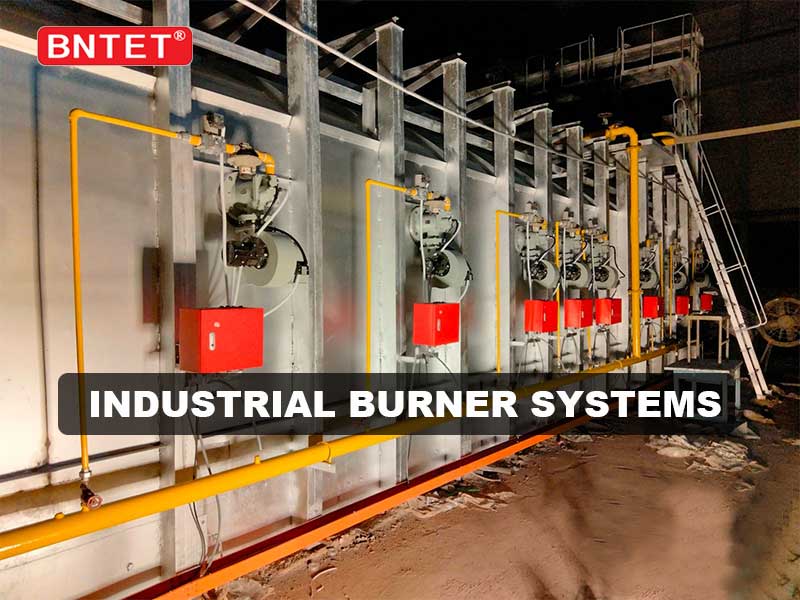

Question 4-Application

Question 5-FAQ

Q:What is the working principle of diesel burner?

A:These burners generate heat by spraying fuel which is then burned. The burner uses a nozzle to spray the fuel which is ignited by an ignition source. The flame created by the burning fuel heats the heat exchanger inside the burner which in turn releases the heat to the outside.

Q:What is a 2-stage oil burner?

A:2-stage burner can switch the flame size with one button, providing a simpler way to control temperature！
