Industrial Oil Burner BNL10

Industrial Oil Burner BNL10 is the component of a boiler system responsible for mixing fuel (diesel oil) with air and igniting it to create a controlled flame that heats the water inside the boiler.

🔘Fuel:diesel oil

🔘Heating Power:61-122kw

🔘Oil Flow:5.1-10.2kg/h

Send Inquiry Send Email

Fast Delievery
Quality Assurance
24/7 Customer Service

Product Introduction

Question 1-Product Description

SHORT DESCRIPTION

•Light oil burner.

•Single stage operation (on/off)

•High pressure mechanical atomisation of fuel using nozzle.

•Ability to obtain optimal combustion values by regulating combustion air and blast-pipe.

•Maintenance facilitated by the fact that the atomisation unit can be removed without having to remove the burner from the boiler.

•Single stage manual flow adjustment.

•One flange and one insulating seal for boiler fastening.

•Combustion air intake with airflow adjustment device.

•Sliding boiler coupling flange to adapt to head

•Protrusion of the various types of boilers.

•Sliding boiler coupling flange to adapt to head protrusion of the various types of boilers.

•Monophase electric motor to run fan and pump.

•Flame presence check by photoresistance.

•Electrical plant protection rating Ip40.

PRODUCT VIDEO

Send Inquiry

Question 2-Product Parameter

BNL10 PARAMETERS

Model	BNL10
Fuel	Diesel Oil
Power(kw)	61-122kw
Oil Flow(kg/h)	5.1-10.2
Power Supply	1N AC 50HZ 220V
Moter Power(kw)	0.18
Combustion Chamber Pressure(mbar)	2.8
Control	One stage fire
Packing Size(mm)	580x465x350
Weight(kg)	16

*For more parameters, please contact: info@bntet.com

Question 3-Product Display

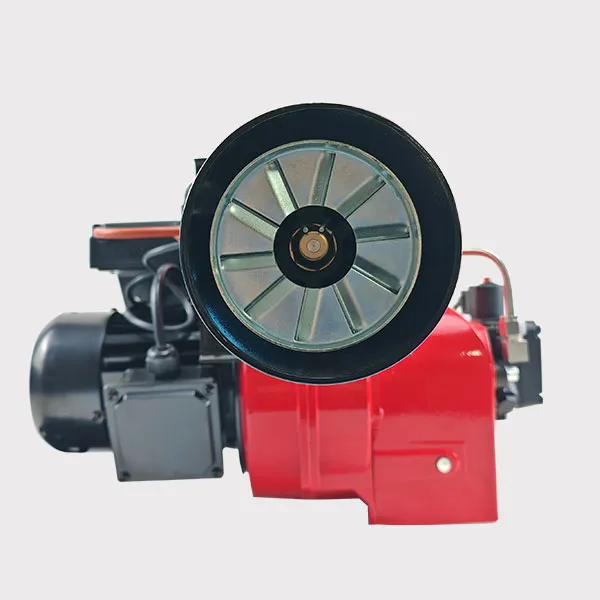

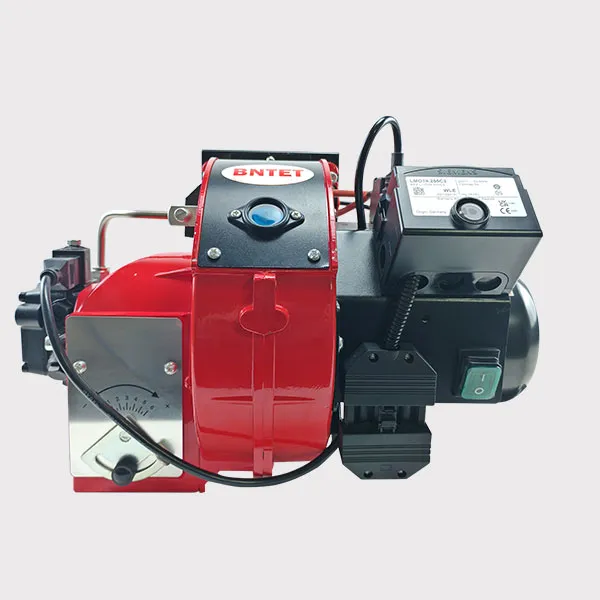

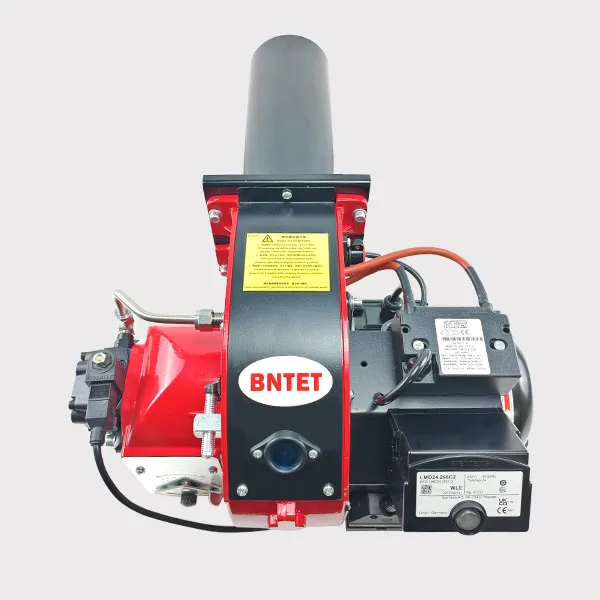

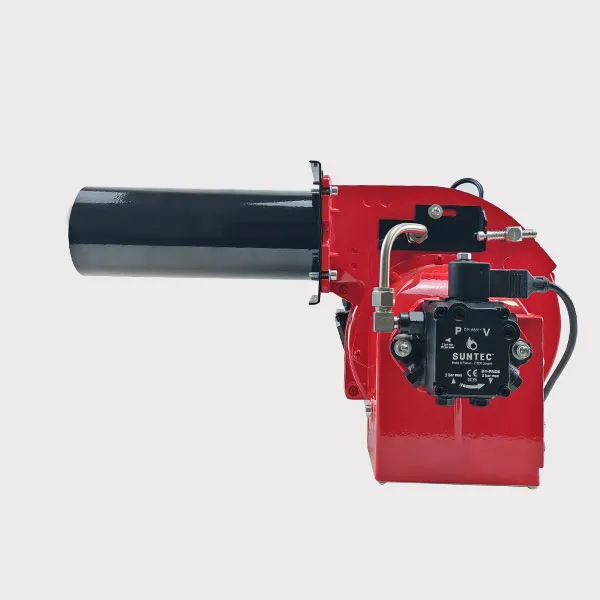

PRODUCT DETAILS

1.Combustion Tube

2.Burner flange

3.Burner body

4.Fire view mirror

5.Fire Detector

6.Controller (programme controller)

7.Motor

8.Air Dampers-control the air flow size

9.Oil Pump

10.Oil Pipe

Send Inquiry

industrial-oil-burner-BNL10-details

industrial-oil-burner-BNL10-details02

Question 4-Application

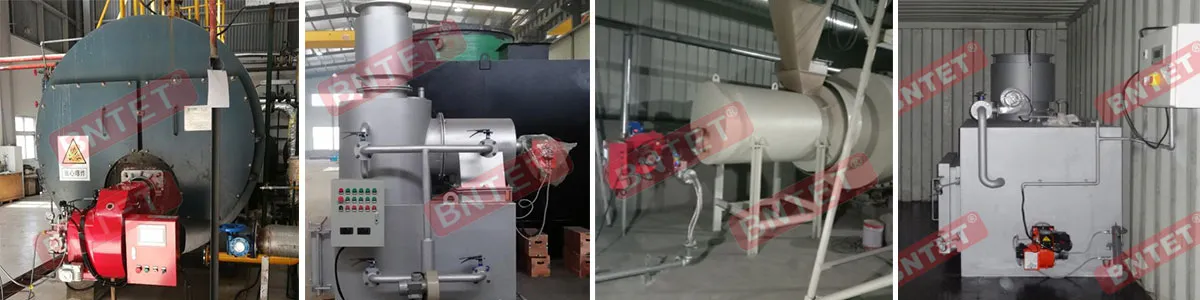

oil-burner-application

Question 5-FAQ

Q:What is the working principle of diesel burner?

A:These burners generate heat by spraying fuel which is then burned. The burner uses a nozzle to spray the fuel which is ignited by an ignition source. The flame created by the burning fuel heats the heat exchanger inside the burner which in turn releases the heat to the outside.

Q:What is a 2-stage oil burner?

A:2-stage burner can switch the flame size with one button, providing a simpler way to control temperature！
