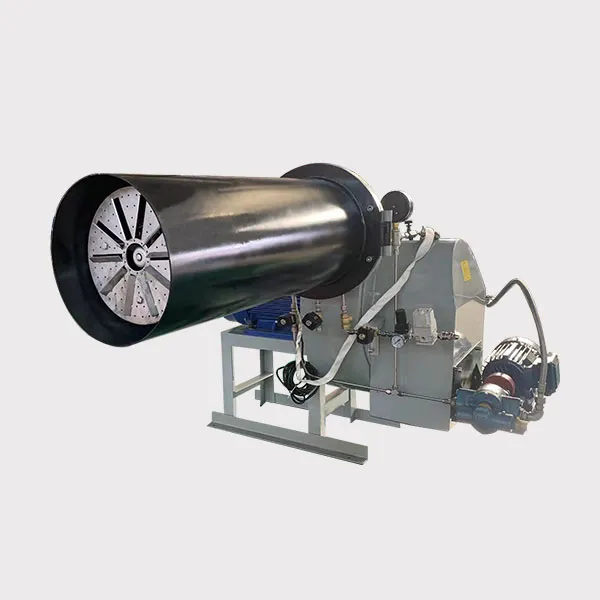

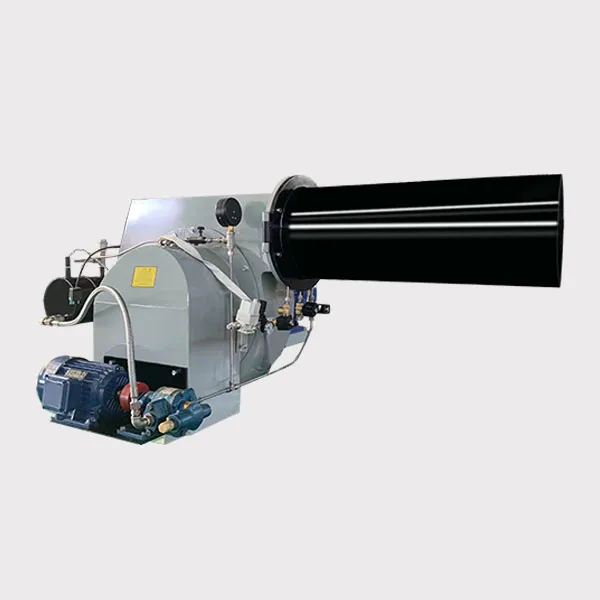

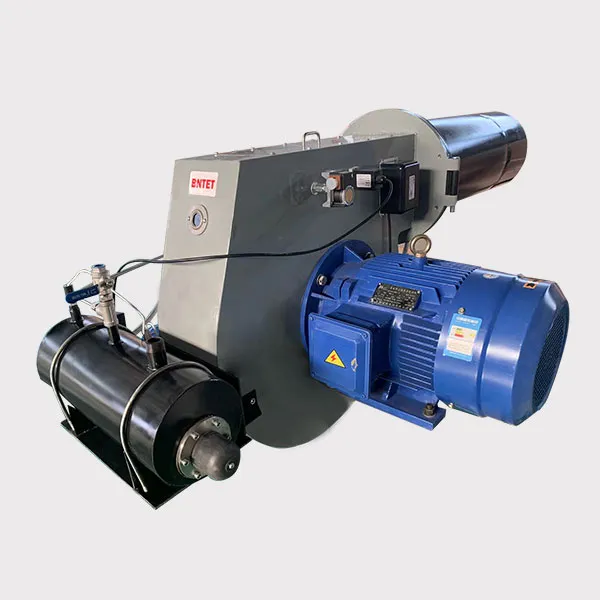

Industrial Heavy Oil Burner BNH60G

1840-5600kw;Heavy oil fired;Two-Stage Operation;

Send Inquiry Send Email

Fast Delievery
Quality Assurance
24/7 Customer Service

Product Introduction

Question 1-Product Description

SHORT DESCRIPTION

Heavy oil burner is a combustion device specially designed to improve the combustion performance of heavy oil with high viscosity and poor atomization performance.

PRODUCT fEATURES

1. Heavy Oil Burner.

2. Two-Stage Operation (High/Low Flame).

3. High Pressure Mechanical Atomisation Of Fuel Using Nozzle.

4. Ability To Obtain Optimal Combustion Values By Regulating Combustion Air And Blast-Pipe.

5. Maintenance Facilitated By The Fact That The Atomisation Unit Can Be Removed Without Having To Remove The Burner From The Boiler.

6. Minimum And Maximum Air Flow Regulation For First And Second Stage By Means Of Electric Servomotor With Pause Closure Of Gate To Prevent Any Heat Dispersion To Flue.

7. With The Fuel Pre-Heater Which Installed With Thermometer And Adjustable Temperature Controller.

8. One Flange And One Insulating Seal For Boiler Fastening.

9. Combustion Air Intake With Air Flow Adjustment Device.

10. Adjustable Blast-Pipe With Stainless Steel Nozzle And Deflector Disk In Steel.

11. Three-Phase Electric Motor To Run Fan And Pump.

12. Flame Presence Check By Photo Resistance.

13. Electrical Plant Protection Rating Lp40.

PRODUCT VIDEO

VIDEO LIST:

Heavy Oil Burner Red BNH60G

Send Inquiry

Question 2-Product Parameter

BNH60G PARAMETERS

Model	BNH60G
Fuel	Residue Oil;Cracked Diesel Oil;Catalytic Diesel Oil;ect.
Power(kw)	1840-5600
Heavy Oil Flow(kg/h)	165-500
Power Supply	3N 50HZ 380V
Motor Power(kw)	15
Control	Two Stage/Modulating
Packing Size(mm)	16201200960
Weight(kg)	335

*For more parameters, please contact: info@bntet.com

Question 3-Product Display

PRODUCT DETAILS

1.heating pump

2.Burner Body

3.Electric proportional control valve

4.pressure gauge

5.Combustion Tube

6.Flame Stabilising Plate

7.Motor

8.Manual regulating valve

Send Inquiry

BNH60G-details-01

BNH60G-details-02

Question 4-Application

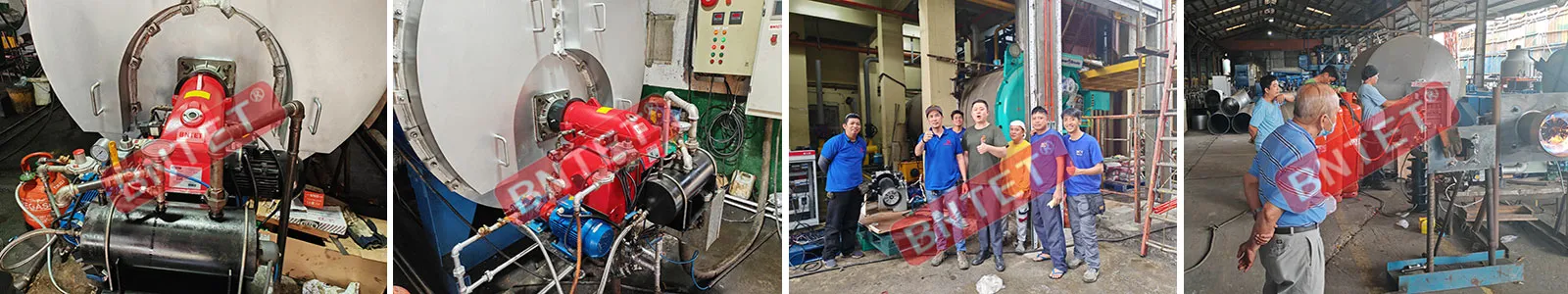

BNH60G-application

Question 5-FAQ

Q:How should I choose a fuel for my heavy oil burner?

A:Usually made from different proportions of cracked, depressurized, atmospheric or waxed oil. When selecting the oil, focus on the following characteristics: high calorific value, good combustion performance, moderate viscosity, good corrosiveness, small solid impurities, easy storage and transportation.
