Plate heat exchanger usually consists of metal plates and rubber sealing gaskets, these plates can be fixed together by screws or clamping devices to form a number of inter-plate channels in which hot

  • Fast Delievery
  • Quality Assurance
  • 24/7 Customer Service
Product Introduction

Question 1-Product Description


SHORT DESCRIPTION

Plate heat exchanger usually consists of metal plates and rubber sealing gaskets, these plates can be fixed together by screws or clamping devices to form a number of inter-plate channels in which hot and cold fluids exchange heat for cooling purposes.

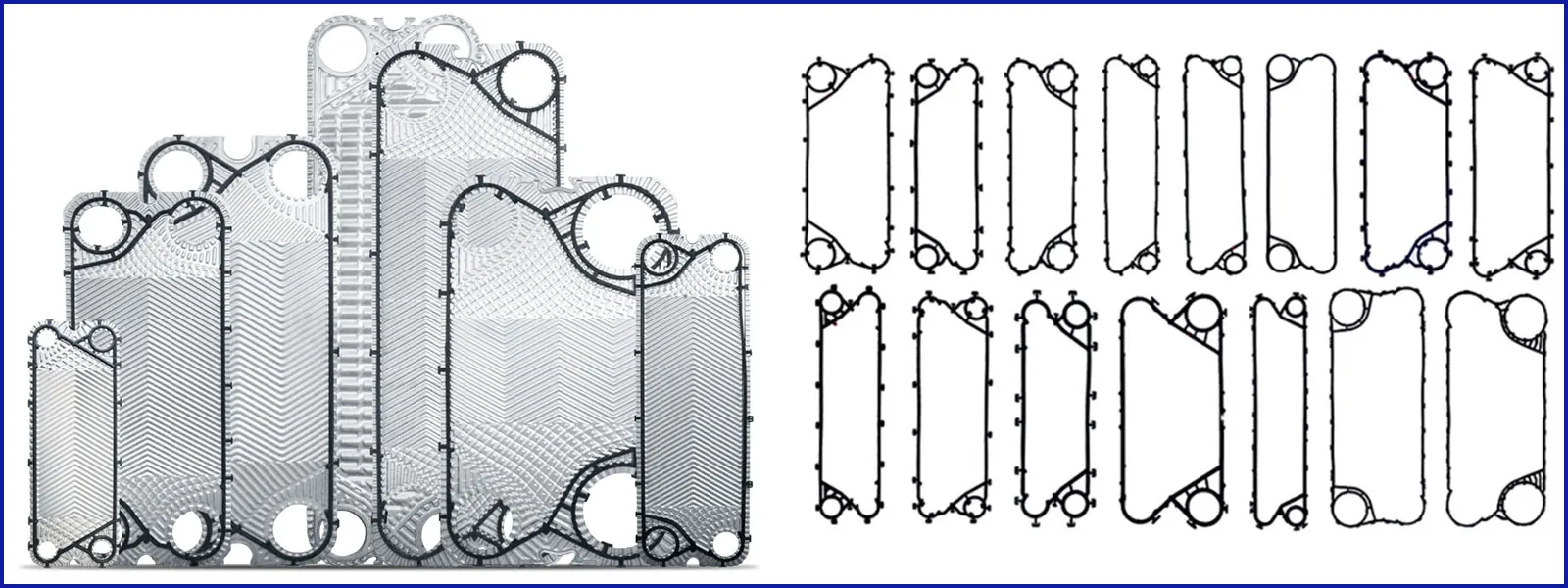

PLATE & GASKET

heat exchanger plate and gsket


Question 2-Product Parameter

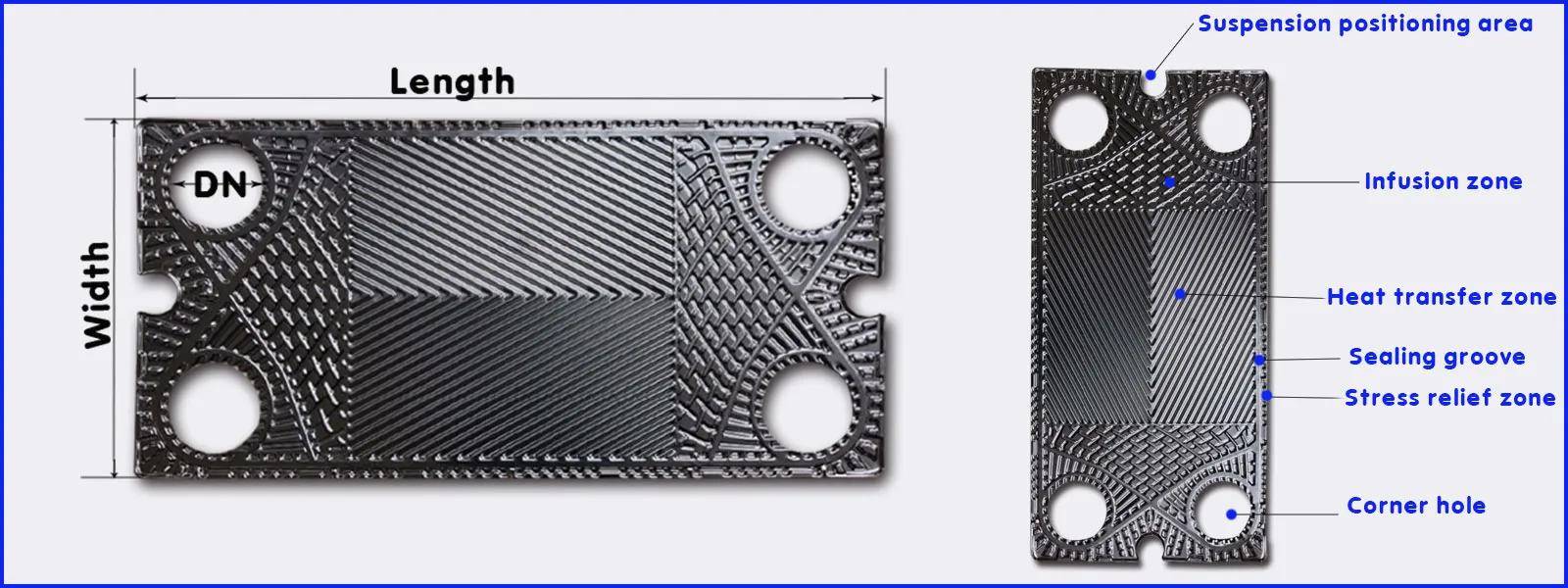

PLATE SIZE

plate-heat-exchanger-size-2

ModleArea(m²)DN(mm)L*W(mm)
TM25-0.030.0325470*180
TM40-0.060.0640545*235
TM50M-0.120.1250735*320
TM50M-0.150.1550885*320
TM50M-0.220.22501131*320
TM65M-0.140.1465830*324
TM65M-0.20.2651060*324
TM100M-0.240.241001109*480
TM100M-0.30.31001232*480
TM100M-0.40.41001439*480

more size

PLATE MATERIAL

MaterialApplication
SS304Drink Water,None Corrosive Liquid,Oil,Steam
SS316LWell Wate,river water,other water
Titanium AlloyHigh temperature and corrosion resistance than titanium
Nickel20Caustic solution(NaOH,KOH,ect)


GASKET MATERIAL

MaterialWorking TemperatureWorking Enviroment
NBR-25~120℃Mineral oil, animal and vegetable oil, hot water, salt water, etc
EPDM-50~170℃
Overheated water, steam, weak acid, weak base, ketone alcohol, etc
HNBR-25~150℃
Crude oil, sulfur-containing oil and organic sulfur compounds, some heat transfer oil, etc
VITON-25~150℃
Nonpolar mineral oil,  sulfuric acid, chlorine water,ect


Question 3-Product Display

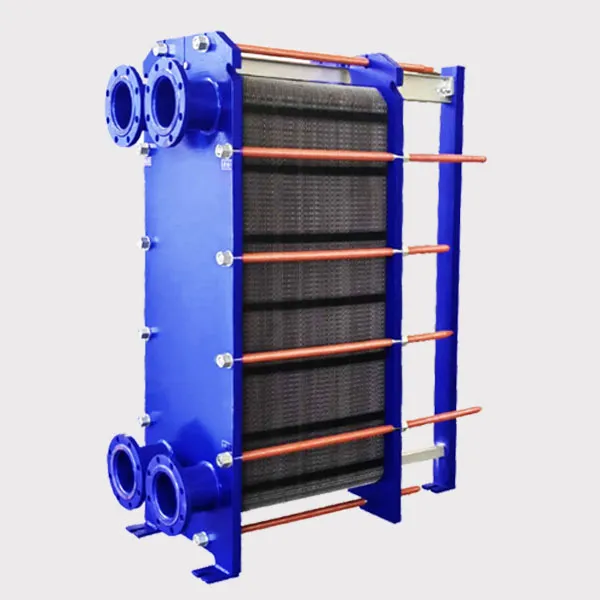

plate-heat-exchanger04

PRODUCT DETAILS

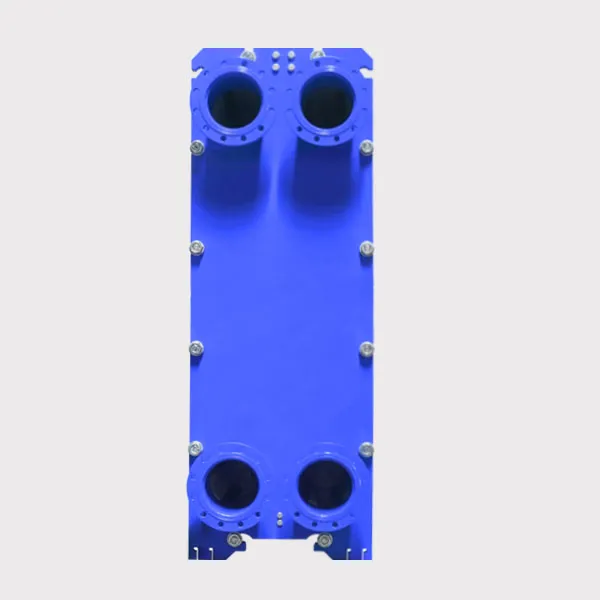

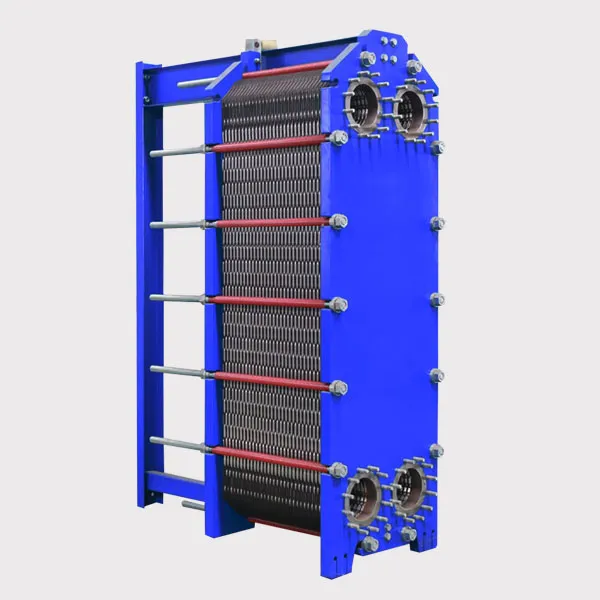

1.Fixed Frame Head
2.First Plate
3.Left Hand Flow Plate
4.Right Hand Flow Plate
5.Plate Pack
6.Left Hand Flow Plate
7.Right Hand Flow Plate
8.Moveable Cover
9.Upper carrying Bar
10.End Support
11.Lower Carrying Bar
12.Tie Rod/Locking Nut
plate-heat-exchanger-details01

plate-heat-exchanger-details01

plate-heat-exchanger-details02

plate-heat-exchanger-details02


Question 4-Application

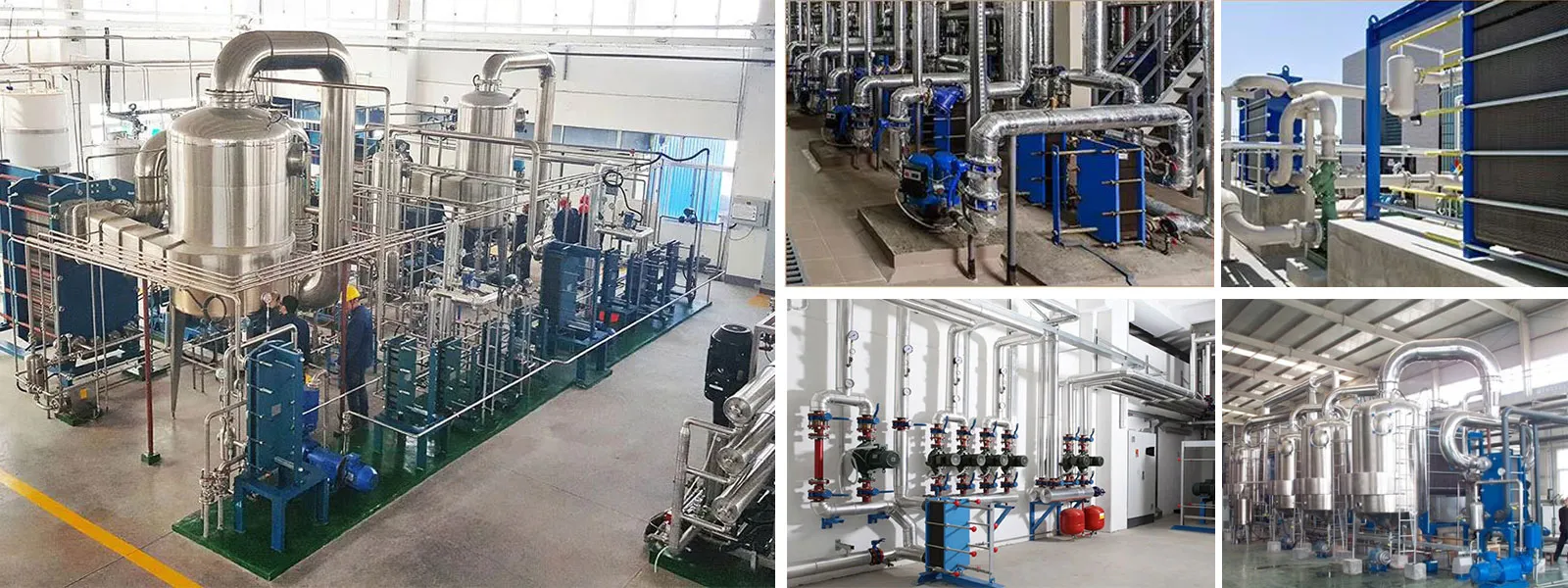

plate-heat-exchanger-application


Question 5-FAQ


Q:Particulars required for quotation

A::-Flow rates or heat load

-Temperature program

-Physical properties of liquids in question (if not water)

-Desired working pressure

-Maximum permitted pressure drop

-Available steam pressure


Question 6-Our service


service
