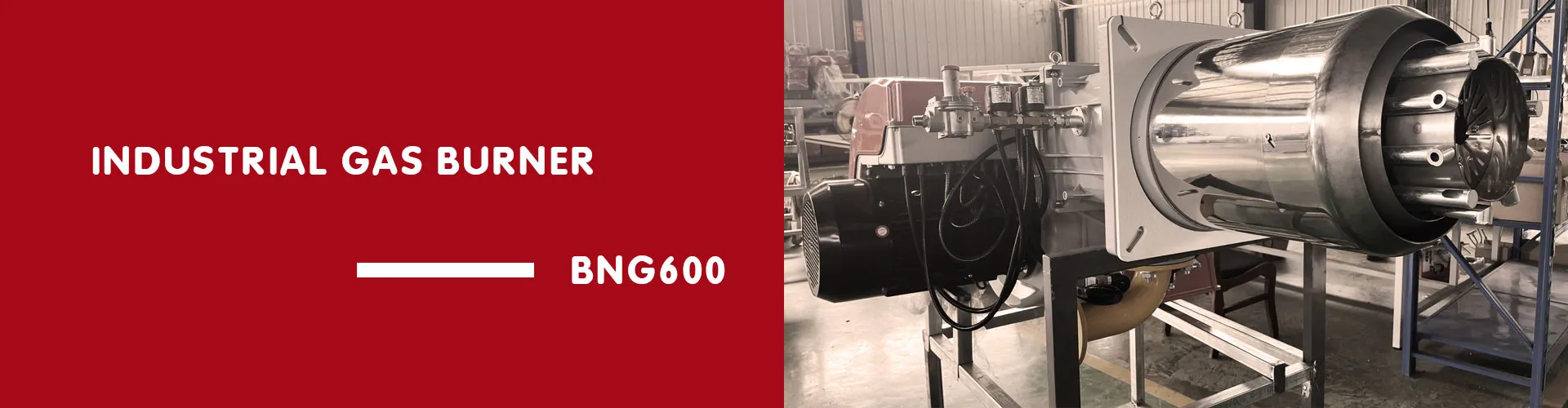

Industrial Gas Burner BNG600

Question 1-Product Description

SHORT DESCRIPTION

♦ Gas burner.

♦ Modulating working.

♦ Air-gas mixing at the air duct.

♦ Atomizing device can be removed without removing the burner from the boiler, which is convenient for maintenance.

♦ Single-stage manual flow regulation.

♦ Control of fan size and frequency by solenoid valve

♦ Control of gas and air volume ratio by air-fuel ratio valve, more accurate control of flame size and improved combustion efficiency.

♦ One flange and one insulating seal for boiler fixing.

♦ Combustion air inlet with air flow regulation device.

♦ Sliding boiler coupling flange to adapt to the head protrusion of various types of boilers.

♦ Single-phase electric motor runs the fan.

♦ Flame presence is checked by ionization electrode.

♦ Electrical equipment protection level is IP40.

PRODUCT VIDEO

RELATED VIDEO

◀️industrial gas burner BNG600 ignition test

Question 2-Product Parameter

BNG600 PARAMETERS

Model	BNG600
Fuel	Natural Gas (NG)| Propane (LP)|Propane Air Mix (LA)|Town Gas (TG) Digester Gas (DG)
Power(kw)	800-5400
Gas Flow(m3/h)	80.9-546.4
Power Supply	3N AC 50Hz 380V
Motor Power	15
Combustion Chamber Pressure(mbar)	19.3
Control	Modulating working
Packing Size(mm)	1620x1200x1000
Weight(kg)	360

*For more parameters, please contact: info@bntet.com

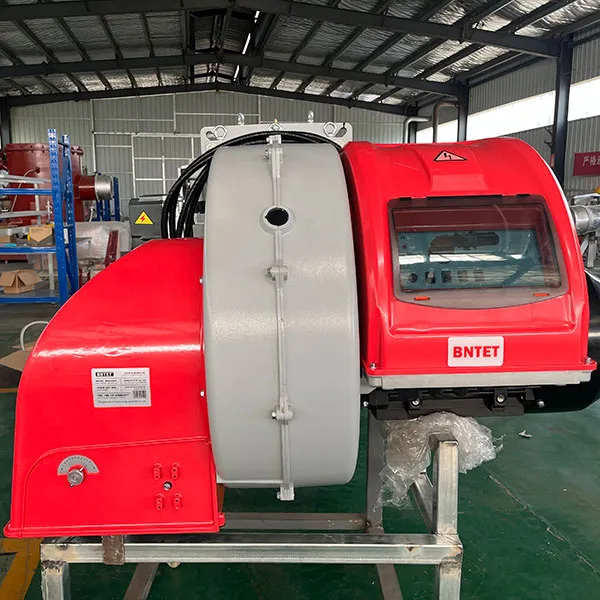

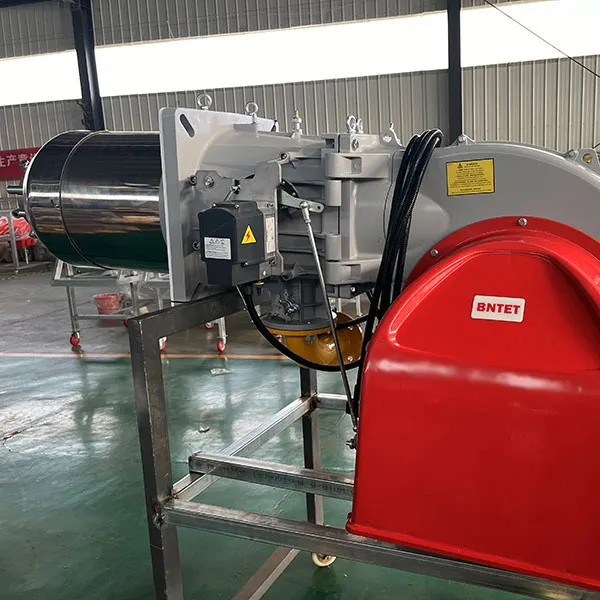

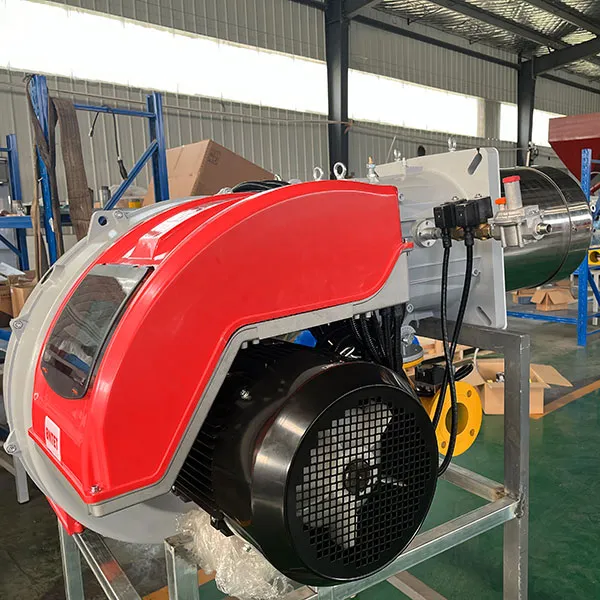

Question 3-Product Display

Question 4-Application

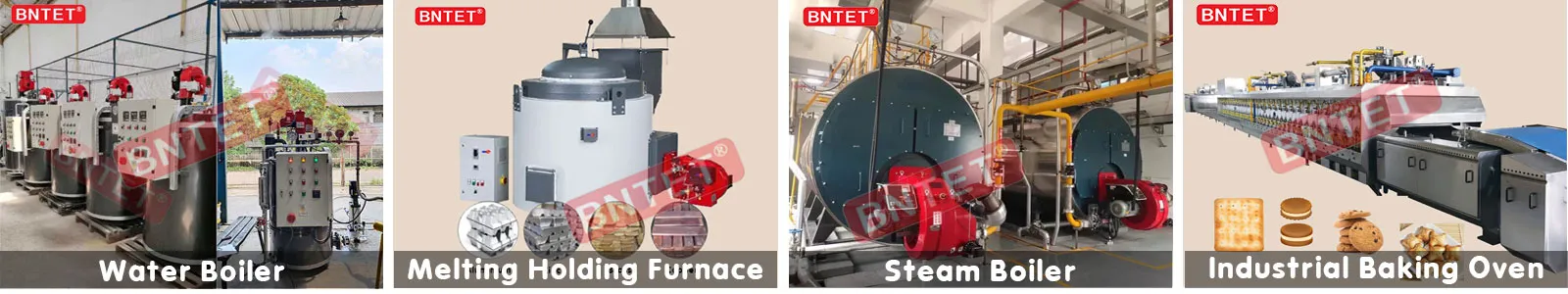

Application

Question 5-FAQ

Q:Industrial gas burner working principle

A:The working principle is that the gas is mixed with air during transportation to the combustion chamber and ignited with a spark or pilot flame.

Q:How to calculate the gas consumption of an industrial gas burner?

A:(Power[kw] x 3.6) / calorific value of gas [MJ/m3n].

Example:

●Required burner power = 7,220 kW

●The calorific value of natural gas=35.8 MJ/m3n

→Gas consumption = (7,220 kW x 3.6)/35.8 MJ/m3n = 726 m3n/h
